Lotus C-01 superbike pictures and specifications
Team OD
Updated: February 21, 2014, 07:13 PM IST

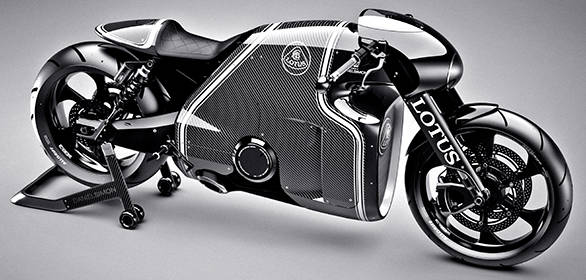

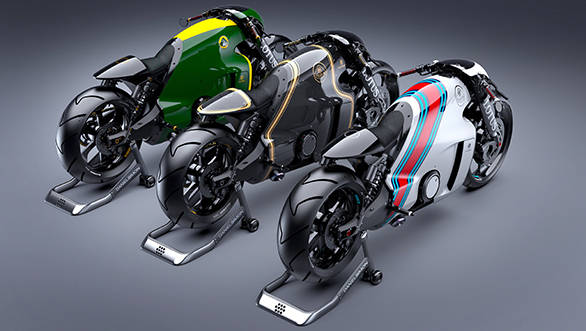

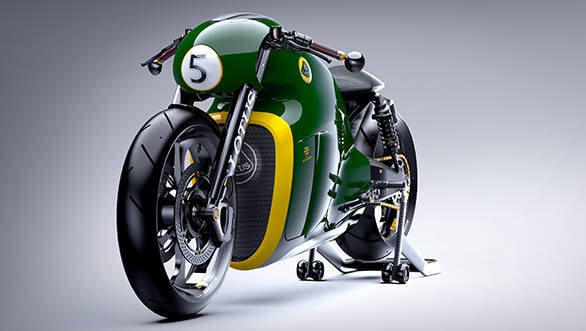

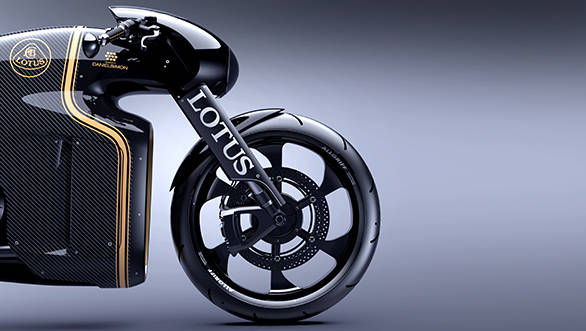

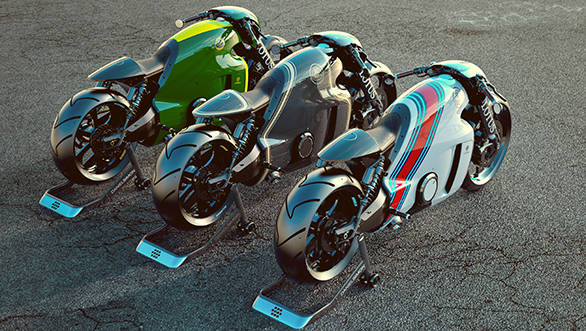

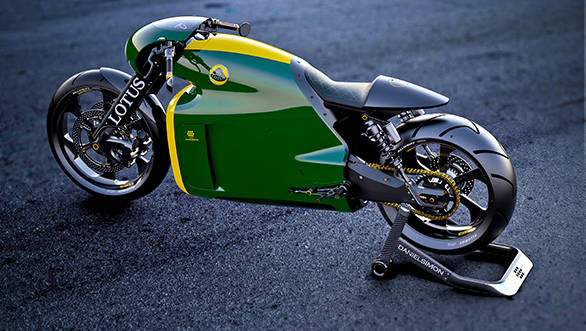

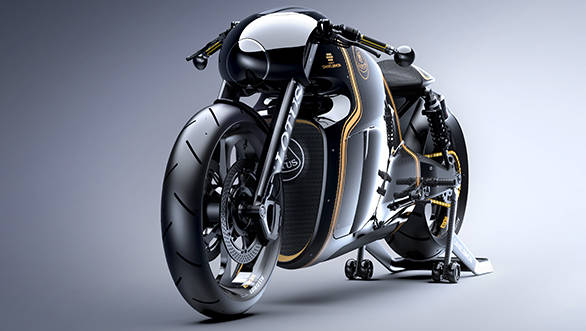

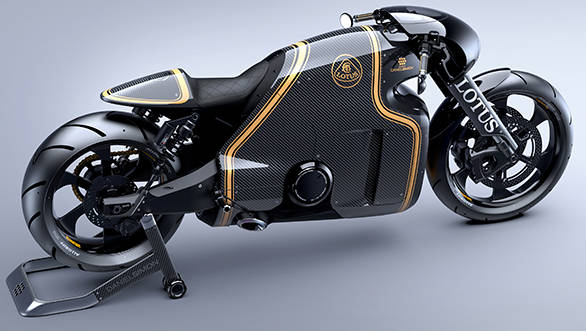

Lotus has just unveiled the C-01 superbike which makes approximately 200PS of power and weighs 181kg. The motorcycle is designed by integrating carbon fibre, titanium and aerospace quality steel by Daniel Simon. While it is too early to talk about the 0-100kmph and top speed timings, here are a few images and specs of the 1195cc V-twin that will blow your mind.
Lotus C-01 specifications
ENGINE | |
Construction | 2-cylinder 4-stroke engine, 75° V-style |
Capacity | 1195cc |
Bore | 105mm |
Stroke | 69mm |
Power | 200PS |
Transmission | 6-gear jaw-type shift transmission |
Lubrication | Dry sump lubrication |
Main shaft ratio | 40:76 |
Lay shaft ratio | 15:41 |
Cooling | Water cooling |
Clutch | Hydraulic anti-hopping clutch |
CHASSIS | |
Frame | Aero tech steel/Titanium/Carbon fibre frame |
Fork | Upside down |
Suspension strut | Twin suspension strut |
Spring travel front | 80mm |
Spring travel rear | 70mm |
Brake system front | Twin brake disc, 320mm, four piston calipers |
Brake system rear | One brake disc, 220mm, two piston calipers |
Chain | X-Ring resp. O-Ring |
Head tube angle | 59° |
Fork angle | 54° |
Wheel base | 1645mm |
Ride height | 90mm |
Height of seat | 710mm |
Fuel tank capacity | 10.5 litre |
Dry weight | 181kg |
Wheel front | 3.00×19; 120/70ZR19 |
Wheel rear | 6.00×19; 190/55ZR17 |
