Mercedes-Benz's all-new petrol and diesel engines explained

Team OD  /
01 Nov 2016 20:17:42 IST

Mercedes-Benz has just unveiled a new line of engines which, according to them, are more powerful, more economical and cleaner." These include one diesel - a 3.0-litre inline-six - and three petrols - a 3.0-litre turbocharged inline six, a 4.0-litre twin-turbocharged V8, and a twin-turbocharged 2.0-litre four-cylinder. But don't let thewhole focus on efficiency fool you, because these engines put out some big numbers!

The V8 twin-turbo petrol - M 176

Umfassende Motorenoffensive bei Mercedes-Benz: Strker, sparsamer und sauberer

The biggest and most powerful engine - the 4.0-litre twin-turbo V8 - will be available on the Mercedes-Benz S-Class from next year. Although Mercedes-Benz already has 4.0-litre V8 which is used in theAMG GT S, it wasprobably developed specifically for outright performance. Codenamed M 176, this engine produces 476PS of power and 700Nm of torque, which is 21PS more than the M 278 V8 currently used in the S-Class.

However, despite this, Mercedes claims that this will be one of the most efficient V8s in the market - 10 per cent more frugal than the M 278. This is thanks to Mercedes' Camtronic valve timing system and a cylinder deactivation system.

The Camtronic valve timing system - which is essentially a mechanical variable valve lift system - uses an electronically controlled acctuator alternates between a low lift cam profile and a high lift profile depending on how much power the driver wants. The low lift profile lets in lesser air-fuel mixture for better efficiency, while the latter allows more of the mixture into the piston for better combustion and therefore better performance.

The cylinder deactivation system, which works along with the Camtronic setup, deactivates four of the eight cylinders whenever possible when a power isn't a priority - for instance, while driving in traffic. Like in the Mercedes-AMG GT S, this new engine will also get two turbochargers which are placed between the V of the cylinders for better efficiency and performance.

The six-cylinder turbo diesel - OM 656

Umfassende Motorenoffensive bei Mercedes-Benz: Strker, sparsamer und sauberer

Mercedes is calling the new six-cylinder turbo diesel engine it's most powerful passenger-car diesel engine. It produces over 313PS, from the outgoing OM 642 engine's 258PS, and yet is claimed to be overseven per cent more efficient. This is thanks to the Camtronic valve timing system, and a stepped-bowl piston design which optimises combustion.

Additionally, the engine also has a dynamic multi-way exhaust gas recirculation system which reuses exhaust gas for better efficiency. The heat from exhaust gases can not only be used to pre-heat the air-fuel mixture, but can also be used in the mixture itself. As odd as that sounds, the exhaust gas in the air-fuel mixture reduces the amount of oxygen available for combustion, thereby reducing emissions and increases efficiency.

Of course, this completely depends on the level of load on the engine. The engine uses a Camtronic switchable exhaust camshaft which determines how much exhaust gas will be recirculated into the combustion process.

The six-cylinder turbo petrol - M 256

Umfassende Motorenoffensive bei Mercedes-Benz: Strker, sparsamer und sauberer

According to Mercedes-Benz, the new six-cylinder turbo petrol will make as much power and torque as the current eight-cylinder engine - 408PS and 500Nm. At the same time, emissions are claimed to be 15 per cent less than the current V6 petrol.

This is a perfect example of electrification, according to Mercedes, with the 'intelligent turbocharging' an integrated starter-alternator (ISG) and a 48V electrical system. The intelligent turbocharger uses an electric auxiliary compressor to feed air into the engine at lower revs, thereby eliminating turbo lag and also reducing the load on the engine.

An ISG is located between the engine and gearbox and is linked to the crankshaft of thecar. It performs the functions of an alternator and starter motor, and thereby eliminating the need to have two separate units. It also makes the whole belt drive system at the front of the engine redundant. This reduces the length of the engine and will allow Mercedes to use this engine in other models without too much trouble.

The ISG also helps with increasing fuel efficiency by functioning as a mild-hybrid system. It generates and stores electricity from the rotation of the crankshaft and uses it to power the car from a standstill. It also works with the start-stop system to start the motor as soon as you hit the accelerator pedal.

But with most start-stop systems, the stored electricity tends to run out pretty quickly because of the high-power electrical systems in a car like the ACcompressor, lights and infotainment system. That's where the 48V electrical system comes in. It produces more power than the conventional 12V system you find on cars and maintains the high power levels thatmodern electrical equipment demand when the engine switches off. When the engine is running, the higher power levels from the electrical system reduces the load on the engine and improves efficiency.

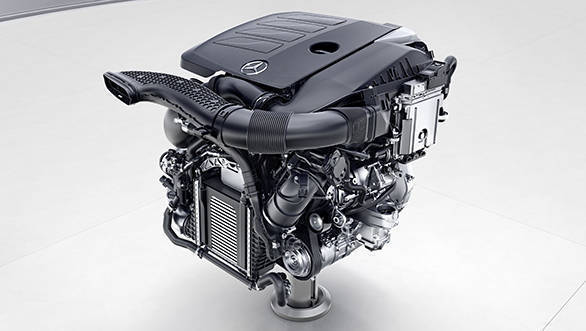

The four-cylinder turbo petrol - M 264

Umfassende Motorenoffensive bei Mercedes-Benz: Strker, sparsamer und sauberer

Although Mercedes hasn't disclosed too much information on this engine, it did say that it would producea specific output of 134PS per litre. It features a twin-scroll turbochargerand a belt-driven 48V starter-alternator (BSA). The biggest differentiator between the BSA and an ISG is that a BSA, as the name suggests, is belt-driven. However, it performs similar efficiency-improving functions such as starting the engine for the start-stop system, generating and storingelectricalenergy and providing boost to the engine till it hits the 2,500rpm mark.
